  • 10" Vacuum Pad - for Curved Surfaces - Low-Marking & UV-Resistant

10" Vacuum Pad - for Curved Surfaces - Low-Marking & UV-Resistant

Stock: 49590TA
Model: G0750

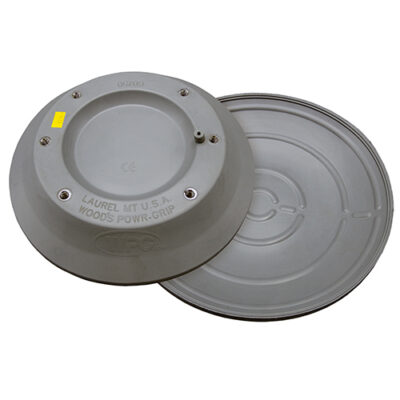

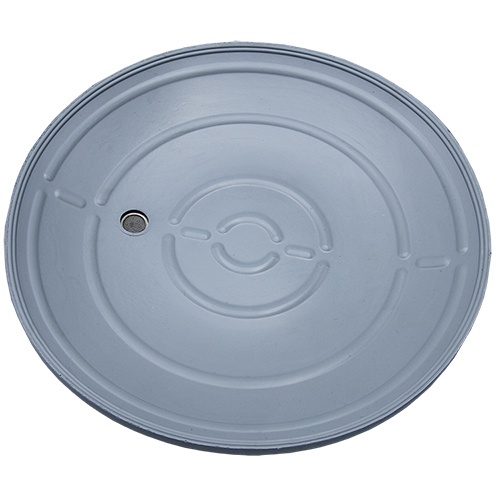

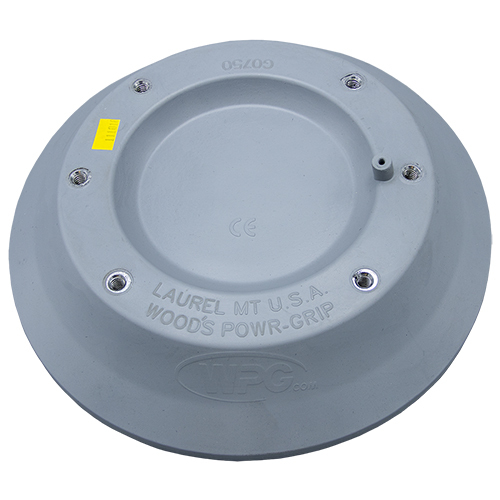

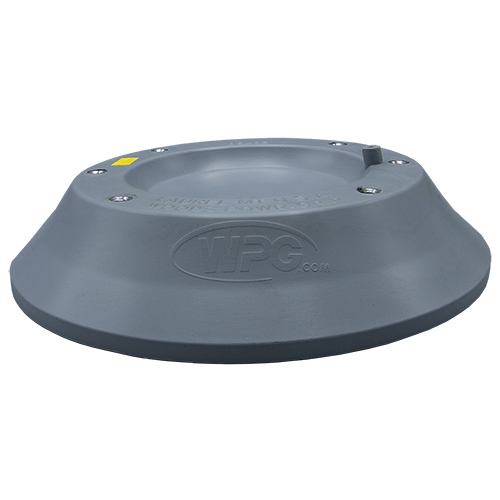

Vacuum Pad - 10" [25 cm] - Concave - Side-Feed - Low-Marking Rubber - UV-Resistant - w/Screen Filter
MSRP Price : $275.55

Details

Note: Not for use on materials thinner than 1/4".

Dimensions in inches & [millimeters]:
( ) = Dimensions when attached to flat surfaces
R* = smallest radius of curvature of materials the pad can attach to

*only applies to R in profile view (right)


To determine pad capacities on specific equipment,
CLICK HERE

Specifications

Model G0750
SKU 49590TA
Ideal Uses Outdoors / Light colored surfaces that could be smudged or discolored
Allowable Surface Curvature Curved
Material and Ambient Temperature Range 32° F [0° C] — 100° F [38° C]
Rubber Type UV Resistant & Low-Marking

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
(Click here for Dealer information.)

Associated Parts
