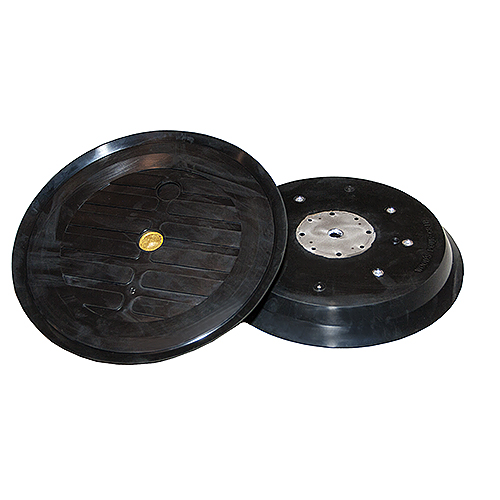

10" Vacuum Pad - Center-Feed - Standard Rubber

Stock: 49616T
Model: HV11-49616T
Vacuum Pad - 10" [25 cm] Dia - Flat/Lipped - Center-Feed - Standard Rubber
MSRP Price : $198.55

Details

Note: Not for use on materials thinner than 1/4".

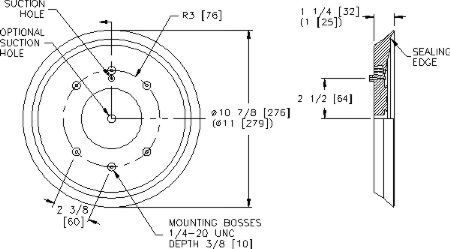

Dimensions in inches & [millimeters]:
( ) = Dimensions when attached to flat surfaces
R = smallest radius of curvature of materials the pad can attach to


To determine pad capacities on specific equipment,
CLICK HERE

Specifications

Model HV11-49616T
SKU 49616T
Allowable Surface Curvature Flat
Material and Ambient Temperature Range 32° F [0° C] — 100° F [38° C]
Rubber Type Standard
Additional Information Center-Feed vacuum hose attachment to pad
