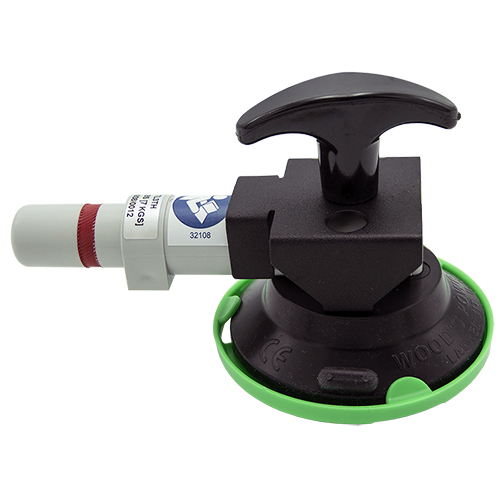

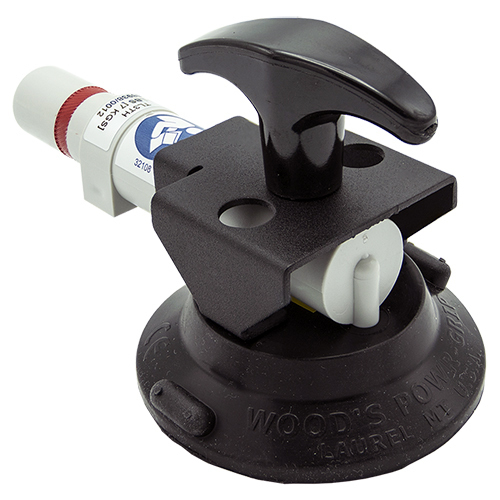

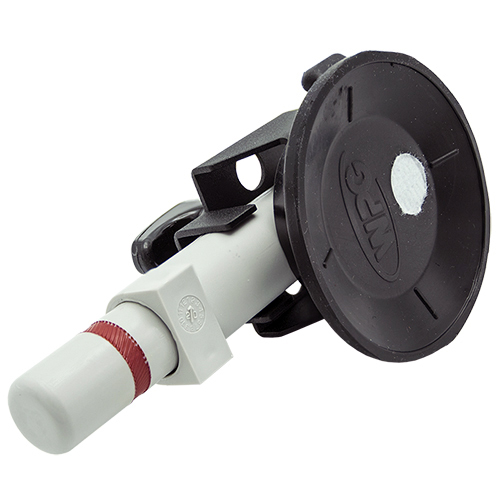

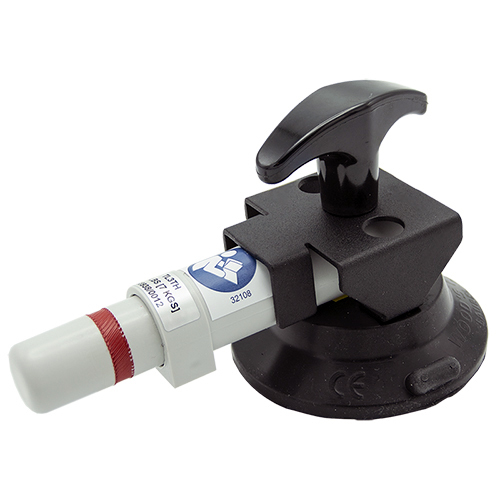

3" Hand Cup with T-Handle for Flat or Curved Surfaces

Stock: 91154
Model: TL3TH
Made in Montana

This compact hand cup has a 15 lbs [7 kg] lifting capacity for the accurate positioning of small flat or curved items. This hand cup can also be used as a mounting cup, with 1/4-20 threaded stud when its handle is removed.

Product(s) sold through Authorized Dealers
Request More Information Find a Dealer

Details

Features:

  • UV-Resistant rubber is ideal for extended use outdoors
  • Fast attach and release
  • Doubles as mounting cup - 1/4-20 threaded stud is exposed when handle removed
  • Red-line indicator warns user of any significant vacuum loss
  • Supplied with vacuum pad protector

Specifications

Instructions Download
Troubleshooting Download
Load Capacity 15 lbs [7 kg]
Surface Texture Smooth
Material Porosity Nonporous
Allowable Surface Curvature Flat / Curved
Material and Ambient Temperature Range 0° F [-18° C] — 120° F [49° C]
Pad Diameter 3" [8 cm]
Pad Model TL3
Rubber Type UV Resistant
Handle Type Industrial-Grade Plastic

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
(Click here for Dealer information.)

Associated Parts
